Arrow 7 HP Big Block Motor
$
699.00
Motor package includes:
- Arrow machined balanced race crank
- Flow ported bottom end
- Big Block top end (bigger reed block)
- Tighter intake track for more cranking pressure.
*Please allow 2-3 weeks for all motors
- Arrow machined balanced race crank
- Flow ported bottom end
- Big Block top end (bigger reed block)
- Tighter intake track for more cranking pressure.
*Please allow 2-3 weeks for all motors
Arrow 5 HP Street Racer
$
499.00
Engine package includes:
ARROW MACHINED BALANCED 38 MM RACE CRANK
- Boost Port Reed Cylinder
- Arrow Power Reed Block and Manifold
- 16mm Keihin Carburetor and Filter
- 4 jets
- Billet CR machine head
- Arrow balanced FM 80 bottom end a.ka. Skyhawk style engine-
- Total displacement: 66cc
*Please allow 2-3 weeks for all motors
ARROW MACHINED BALANCED 38 MM RACE CRANK
- Boost Port Reed Cylinder
- Arrow Power Reed Block and Manifold
- 16mm Keihin Carburetor and Filter
- 4 jets
- Billet CR machine head
- Arrow balanced FM 80 bottom end a.ka. Skyhawk style engine-
- Total displacement: 66cc
*Please allow 2-3 weeks for all motors
9.5 HP Reed Case Racing Engine
These are the engines that were engineered strictly for racing for the
Arrow Motorized Cycles Race Team and after research and development, will now be available for purchase for the other class of racers. If you are a MBR with a designated racing number who rides the circuit, special racers discounts will apply and support programs. For ordering information, contact Dave Rust at (562) 640-1244
Engine package includes:
- 26 mm VM round slide racing carb
- C&R Machine Stage 2 racing head
- Balanced stroked long rod racing crank
- Crank case has been matched and flow ported and machined for reed case adapter plate.
- Arrow racing cylinder. Extensive cylinder porting with the Arrow intake plug allows for a much larger third transfer port.
- Arrow’s racing snake pipe. This pipe has been extensively race tested and proven for optimal results. These pipes came out to be the winners.

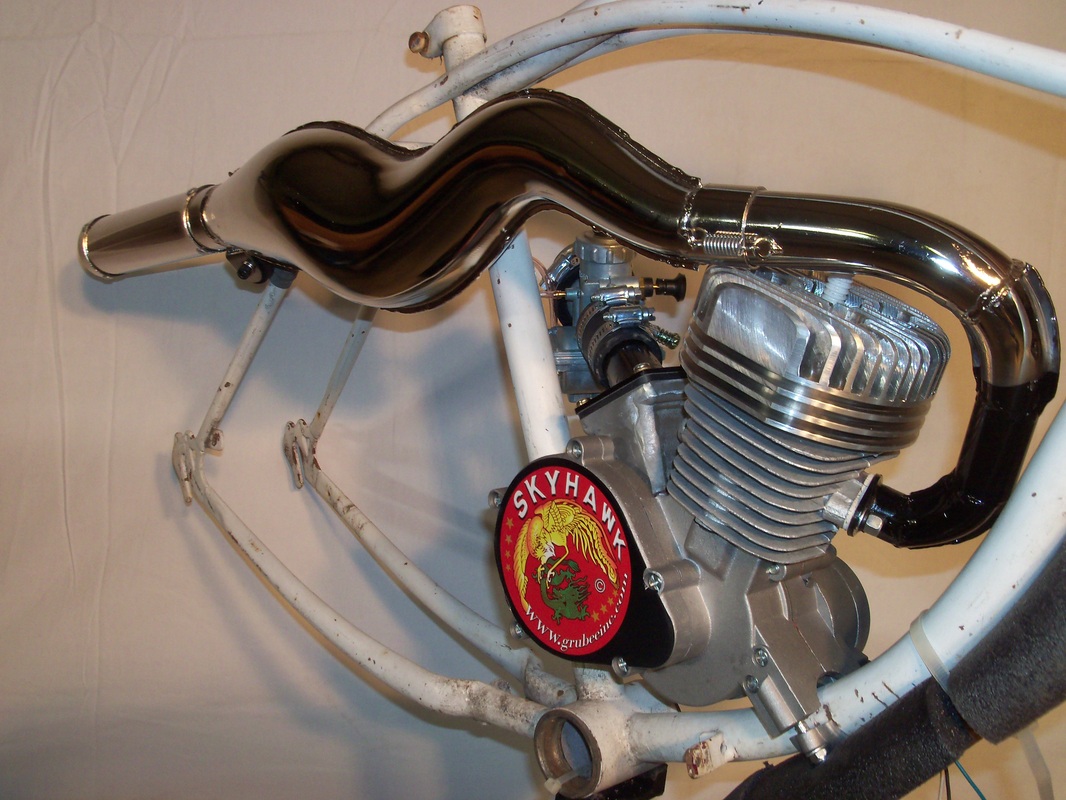

- As shown in the photo, each engine with the pipe is mocked up and assembled in a frame jig to ensure a good fit and easy assembly. The jig that is used is a Schwinn style cruiser frame.
Note: We back our engines as being the fastest on the market. However, as with all racing engines, they do not come with a warranty. We do offer Technical Support to
all of our customers.
*Please allow 2-3 weeks for all motors
Arrow Motorized Cycles Race Team and after research and development, will now be available for purchase for the other class of racers. If you are a MBR with a designated racing number who rides the circuit, special racers discounts will apply and support programs. For ordering information, contact Dave Rust at (562) 640-1244
Engine package includes:
- 26 mm VM round slide racing carb
- C&R Machine Stage 2 racing head
- Balanced stroked long rod racing crank
- Crank case has been matched and flow ported and machined for reed case adapter plate.
- Arrow racing cylinder. Extensive cylinder porting with the Arrow intake plug allows for a much larger third transfer port.
- Arrow’s racing snake pipe. This pipe has been extensively race tested and proven for optimal results. These pipes came out to be the winners.
- As shown in the photo, each engine with the pipe is mocked up and assembled in a frame jig to ensure a good fit and easy assembly. The jig that is used is a Schwinn style cruiser frame.
Note: We back our engines as being the fastest on the market. However, as with all racing engines, they do not come with a warranty. We do offer Technical Support to
all of our customers.
*Please allow 2-3 weeks for all motors
$
1,199.00
Arrow Sleeper Street Racer
$
349.99
The New Arrow Sleeper Street Racer includes:
A basic stage 1 machine balanced crank shaft. This is an in-shop balancing crank shaft. Unlike the other motors, it has a basic stage 1 balanced crank shaft.
Arrow re-chambered squish band or "quench" cylinder heads (the Squish Band or "Quench" is defined as the area between the flat of the piston and the flat of the cylinder head at top dead center).
New arrow high flow intake manifold
Performance piston port race cylinder
16 mm Keihin carburetor with a high flow filter and 4 jets
*Please allow 2-3 weeks for all motors
